Equipment

Current List of Equipment (as of 01.08.17)

Scopes:

AstroTech AT12RC Truss 12” RC F8

10” Homemade Newtonian F4 (F3 with Keller reducer) Royce mirror

Takahashi Sky90 Refractor

Unitron 160 Photo Equatorial 4” Refractor with brass clock drive

William Optics 66mm APO refractor

Mount:

Astro-Physics AP1200 (for the RC)

Astro-Physics 32” Portable Pier

Paramount MYT (for the 10” Newt and Sky90)

Cameras:

Starlight Xpress SXVR-H36 (16mp full frame)

Starlight Xpress SXV-M25C (6mp APS OSC)

Starlight Xpress Loadstar x2 guide cam

Other:

Homemade OAG

TS 2.5” RC FF

Feathertouch 2” and 3” focusers

Starizona Microtouch wireless motofocus

Homemade PWM dew heater

Pyramid 12A 12V power supply

HP i7 laptop with 1TB SSD

Daystar Quark for Prominences

Side by side Losmandy plate

Homemade 12 - 18v battery power supply

Supporting equipment:

Grizzley metal lathe 10x22

Grizzley metal mill

Machined components:

                                                  10” Newtonian

Baffle opening reducer for 12” RC

                           Modified back plate adapter

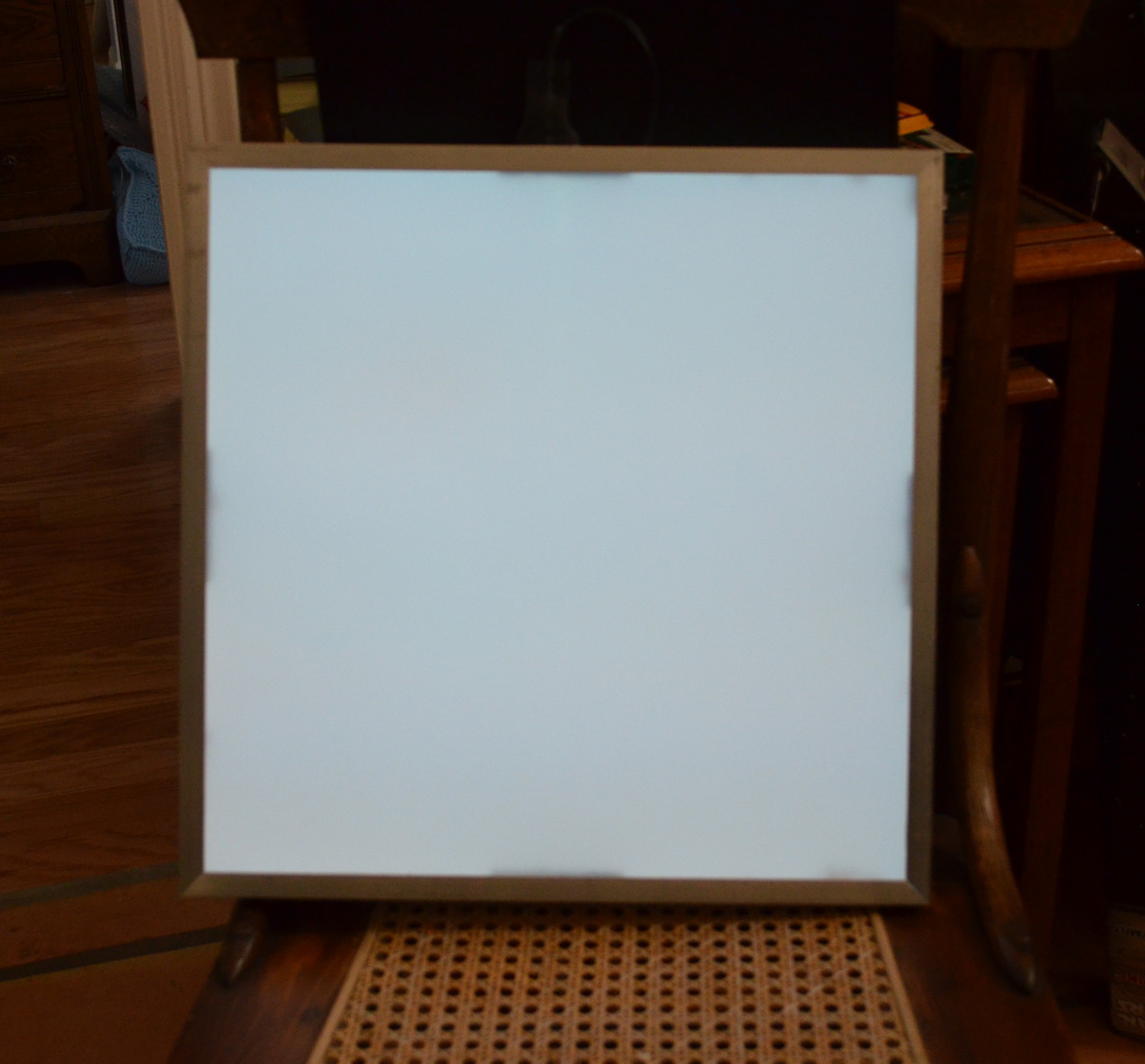

    Homemade flat box

   15”x15” EL panel w/variable intensity power supply

   ¾” aluminum channel with 2 diffuser plates

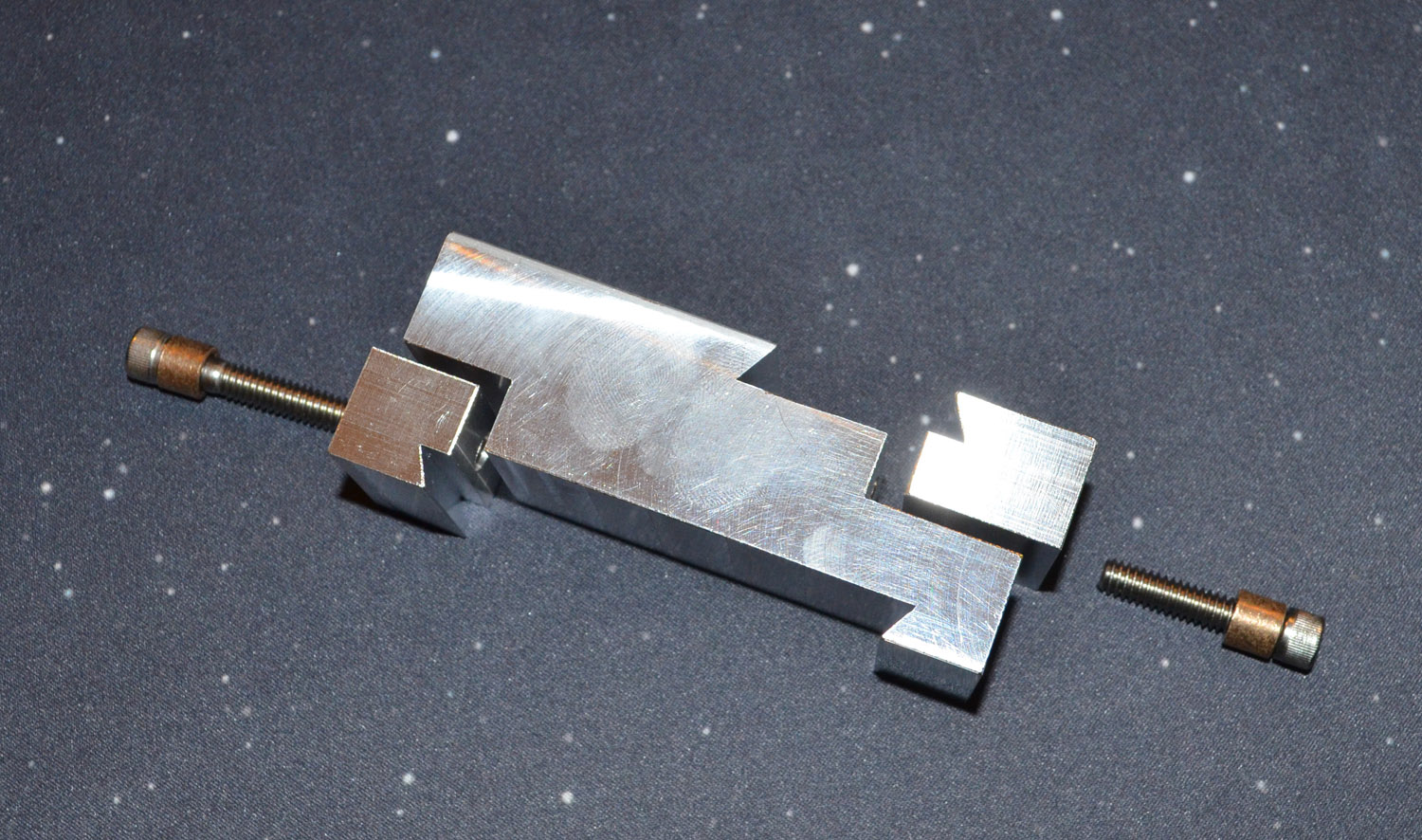

Red dot dovetail holder

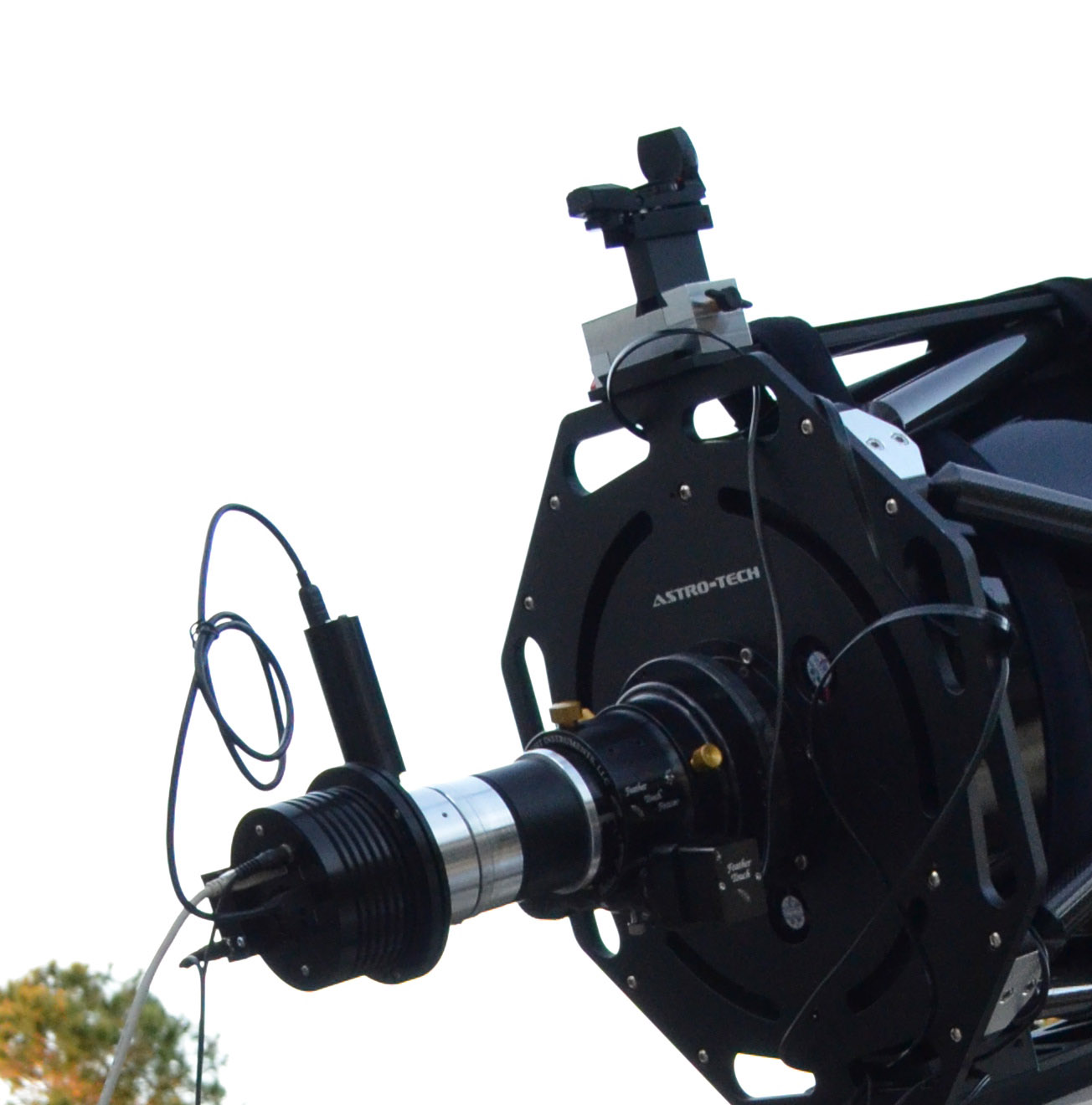

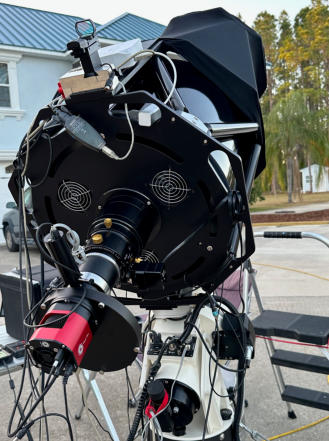

Homemade OAG and red dot dovetail holder on 12” RC

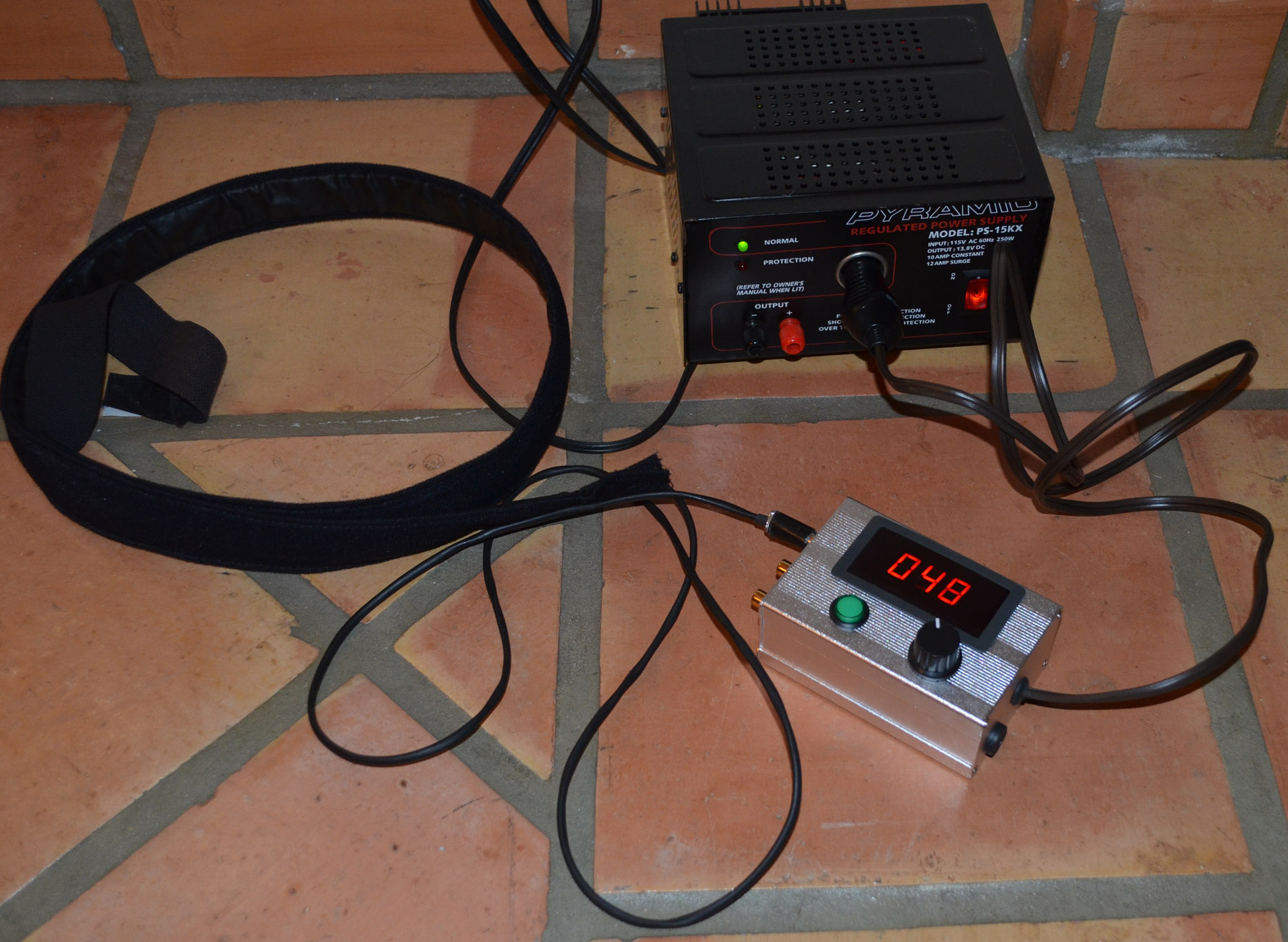

       Homemade PWM dew heater

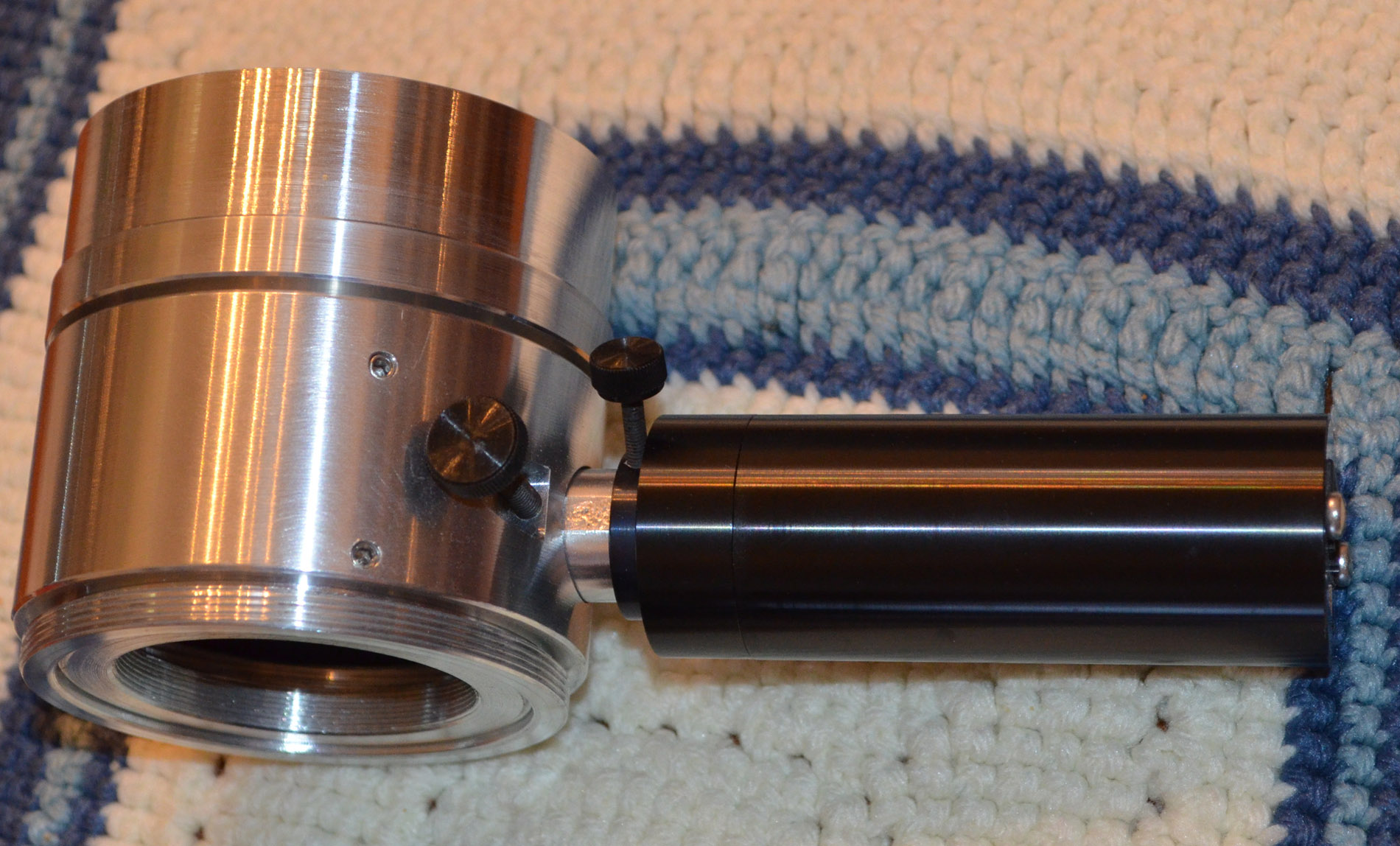

OAG close up (with filter holder)

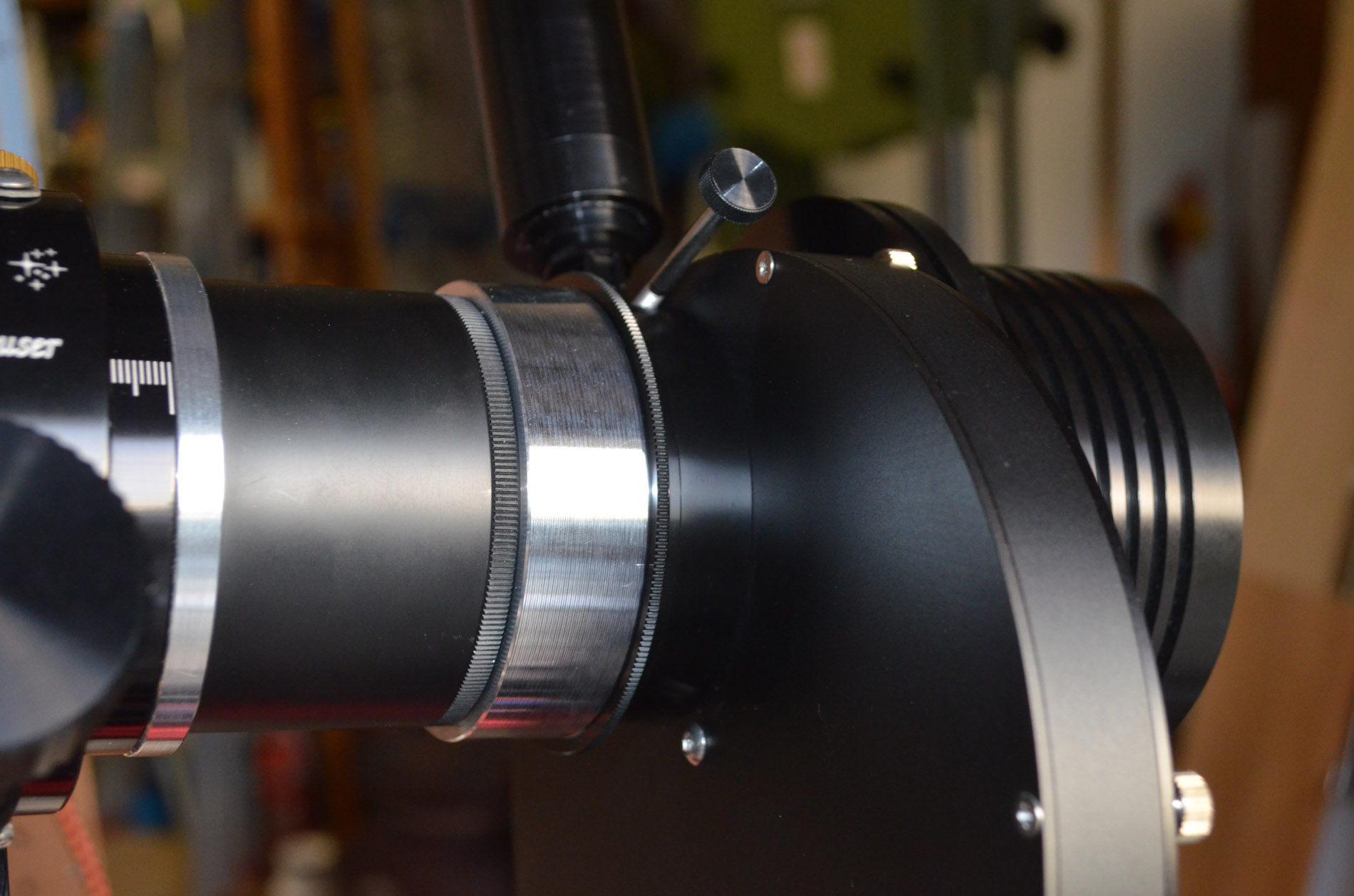

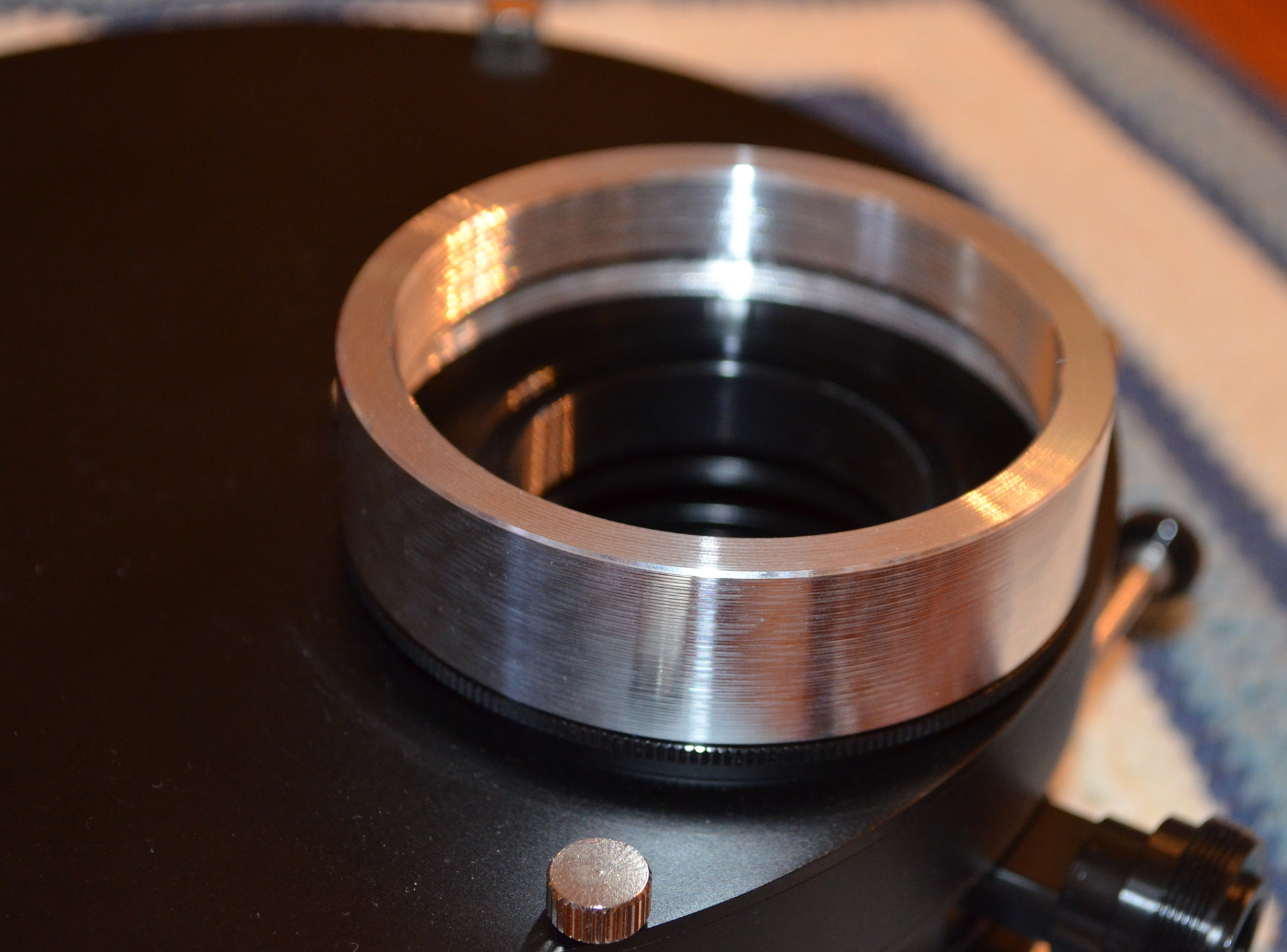

                              20.7mm custom spacer for filter wheel

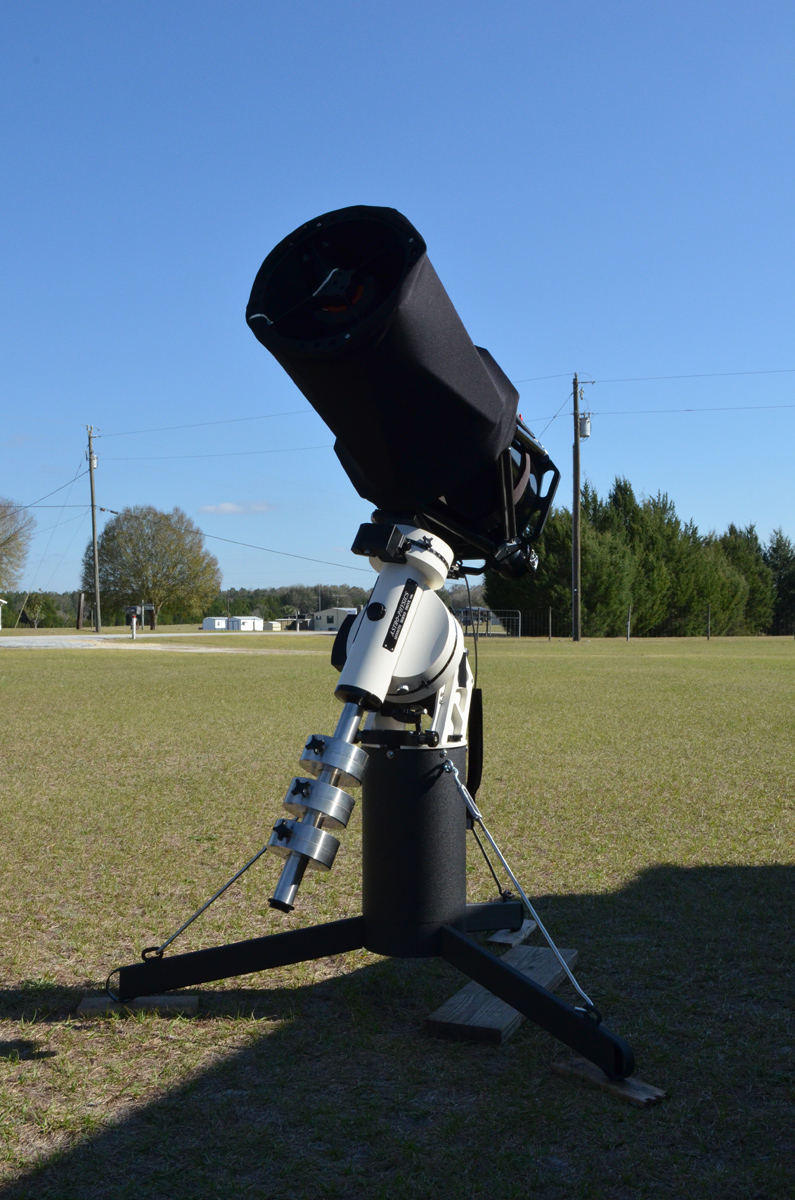

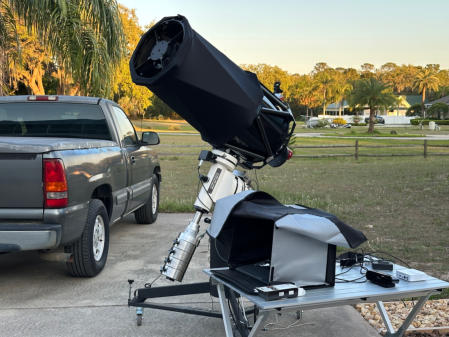

12” RC at Chiefland

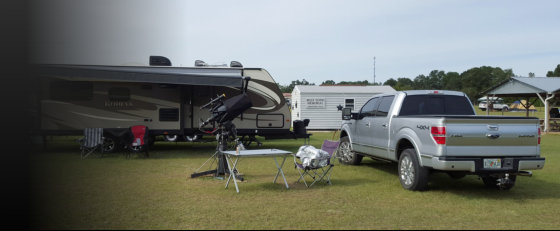

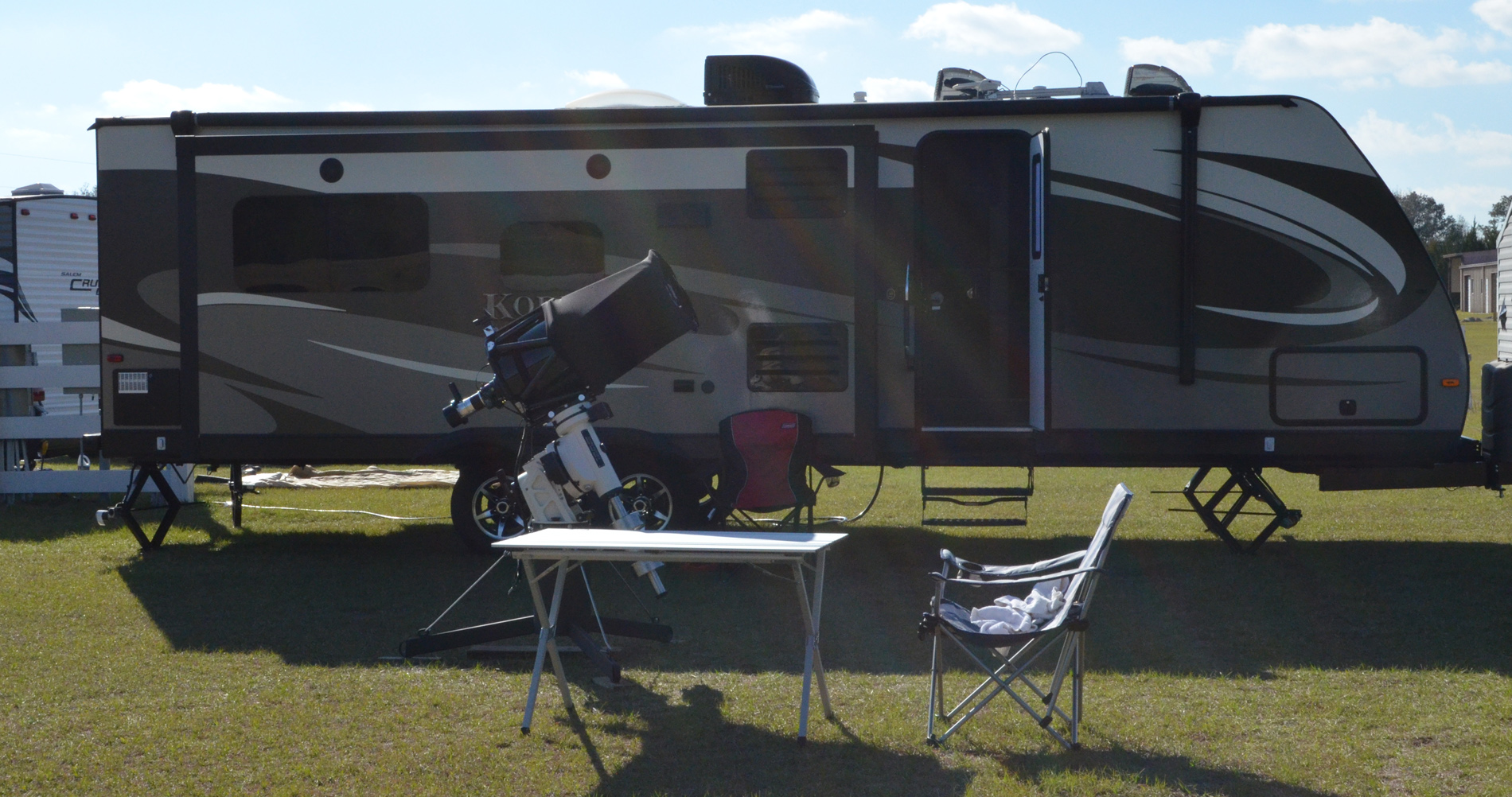

Camper and scope setup at Chiefland

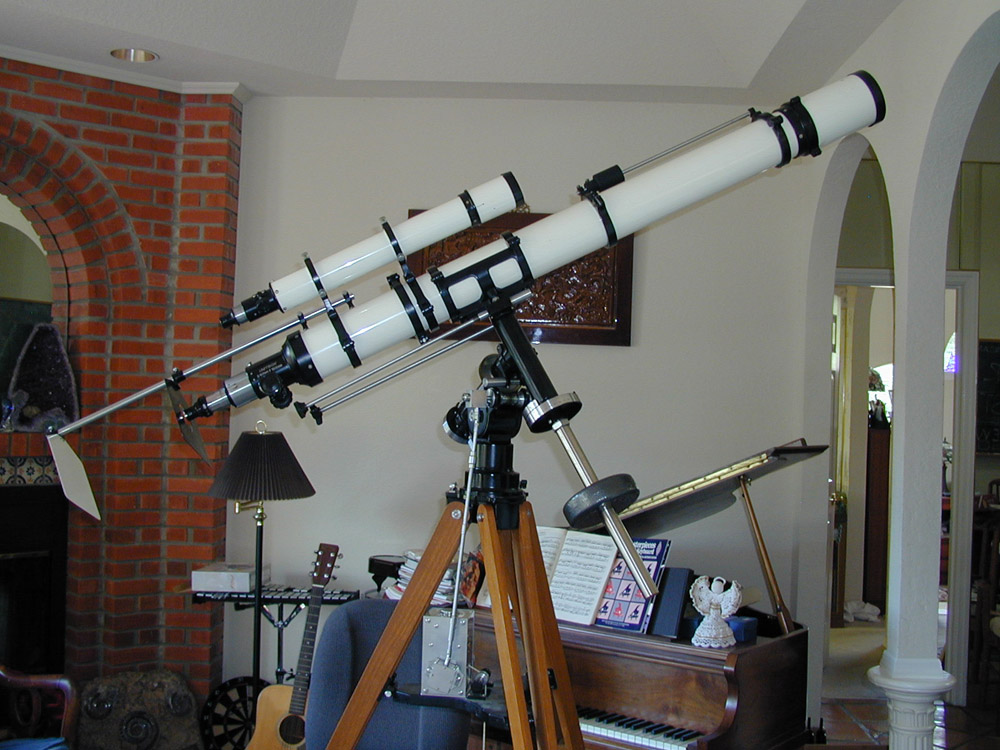

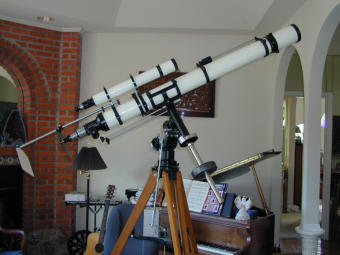

Unitron 4” Model 160

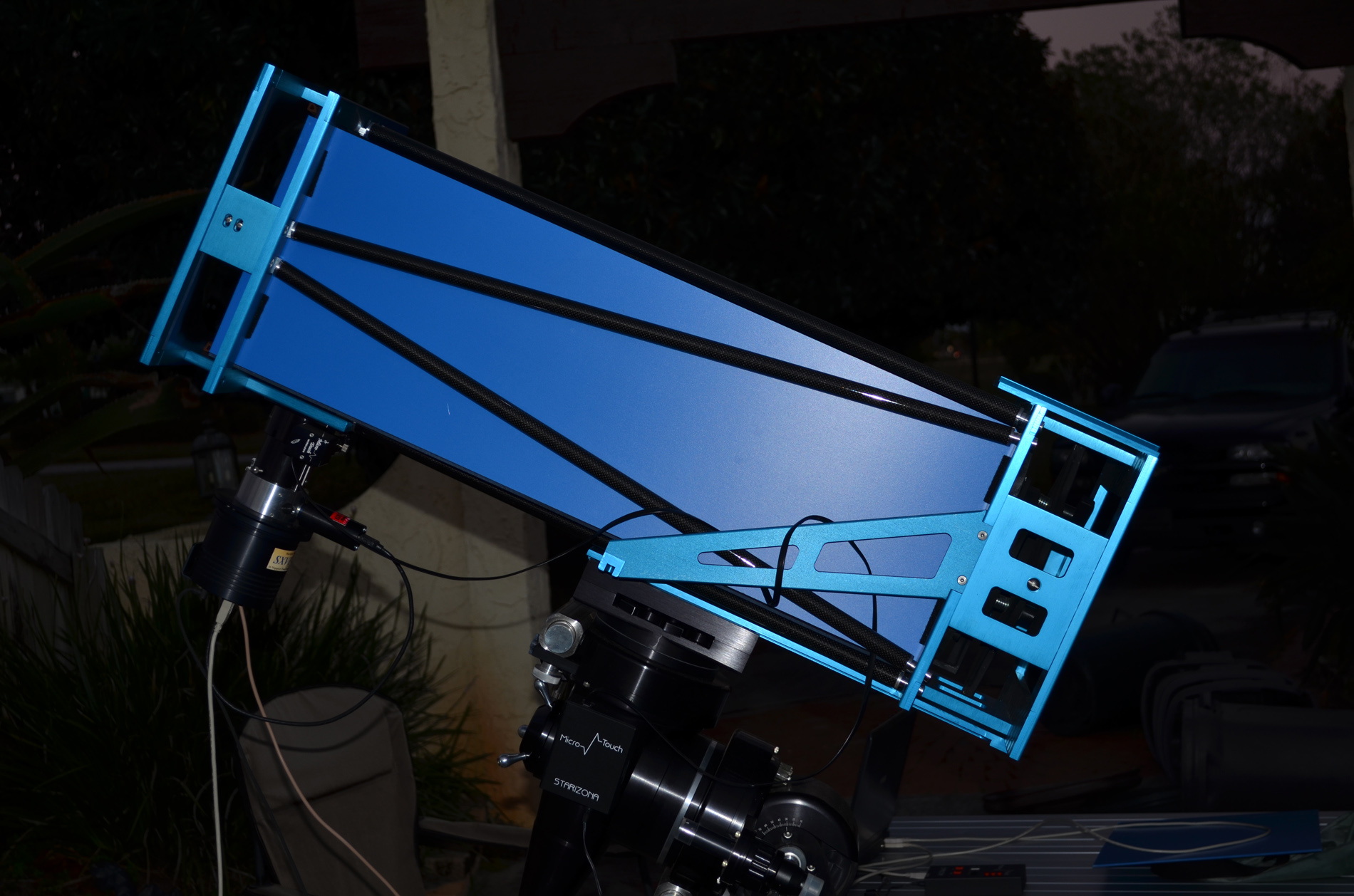

10” F4 Homemade Newtonian

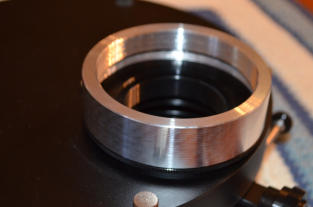

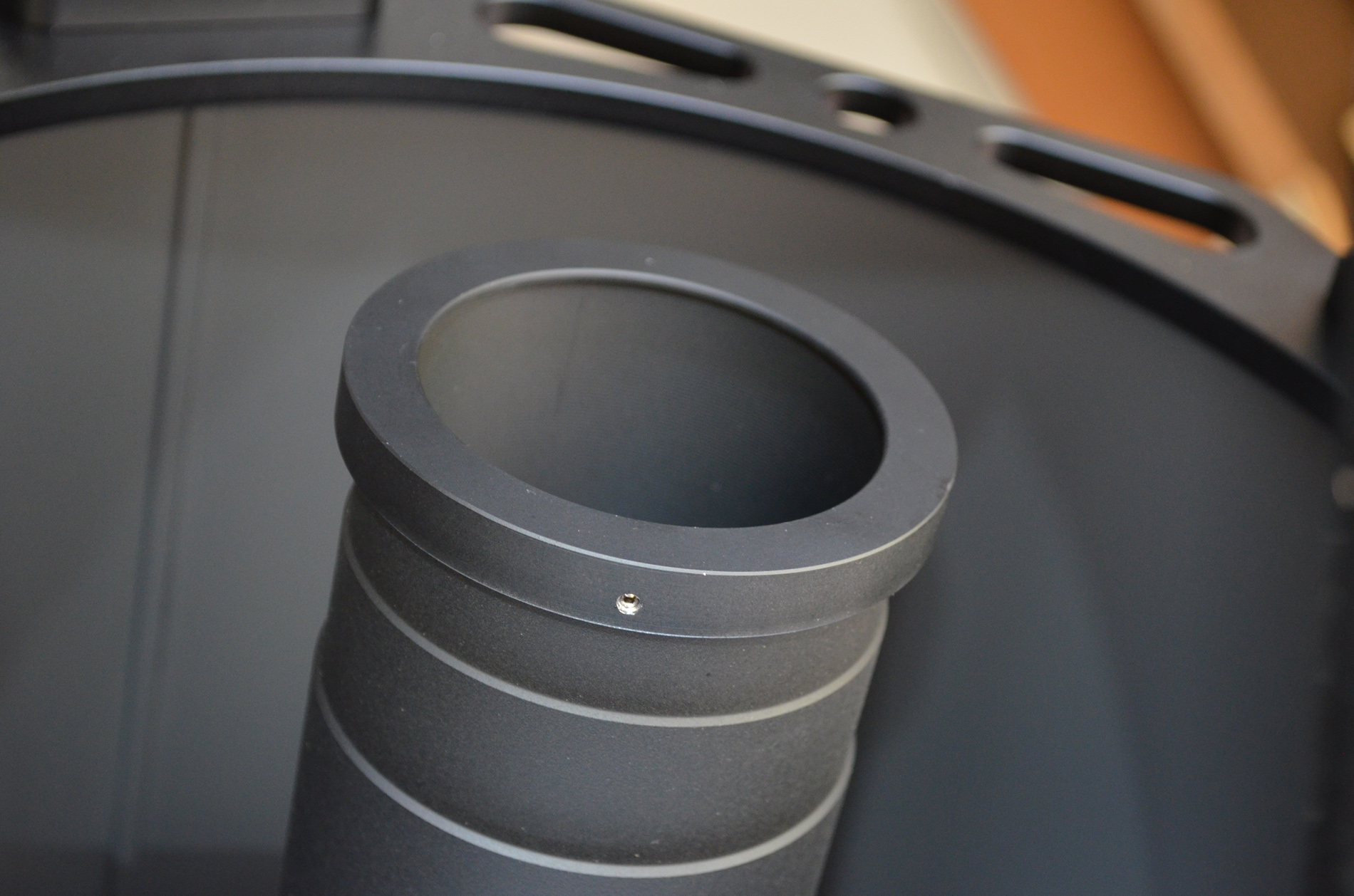

 Homemade baffle reducer
 Homemade backplate adapter (anodized black)
